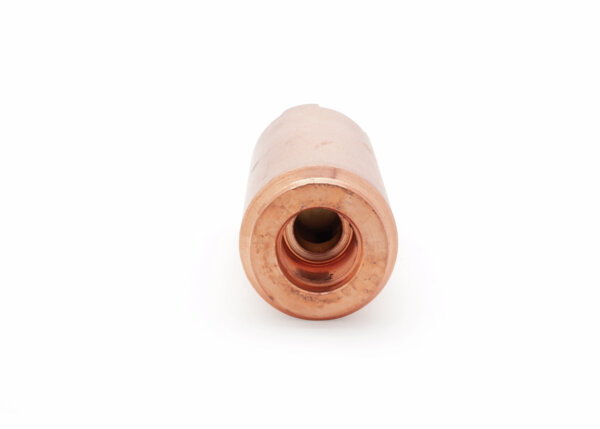

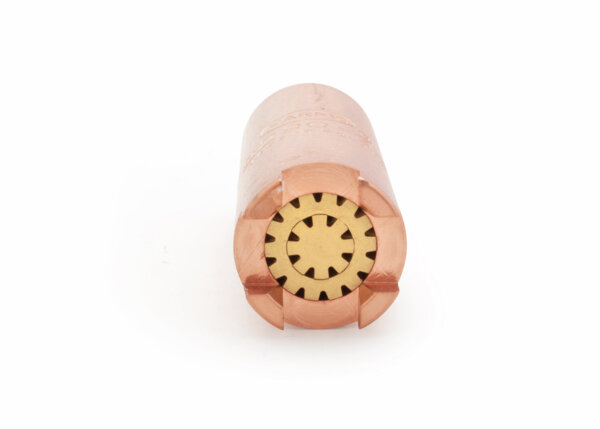

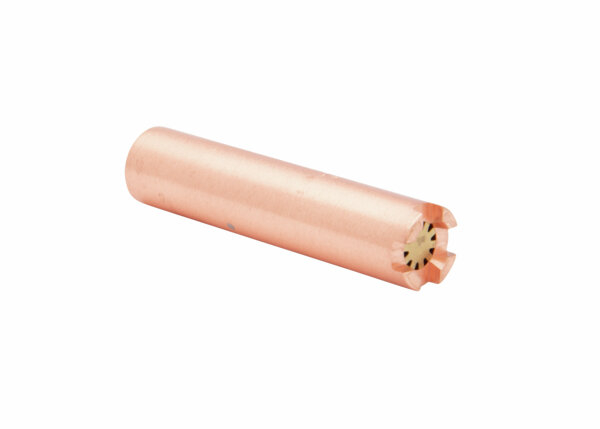

Harris 2290-3H Heating Nozzle
In Stock
Model 2290-3H heavy duty heating tip
For use with propane/natural gas.
Model 2290-3H heavy-duty heating tip for use with propane/natural gas. This tip is adjustable over a broad heat range as it is capable of producing more than 1 million BTU per hour using low-cost readily available safe alternate fuels. Use with “E” equal or positive pressure mixing systems.
Features
- Heavy-duty heating tip
- Produces more than 1 million BTUs per hour
- Adjustable over a broad heat range
- 1/2″ – 25 (M) thread connections
- Use with cost-saving alternate fuels

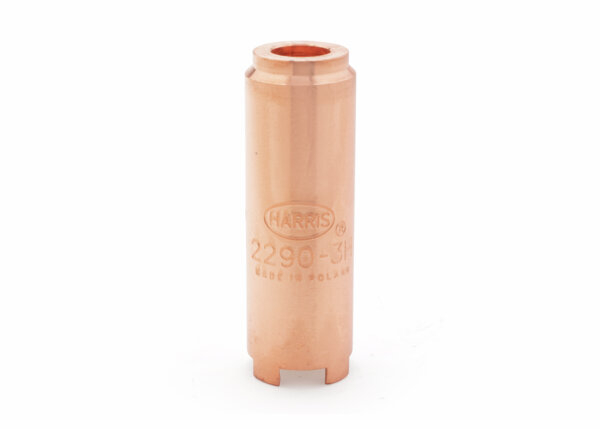

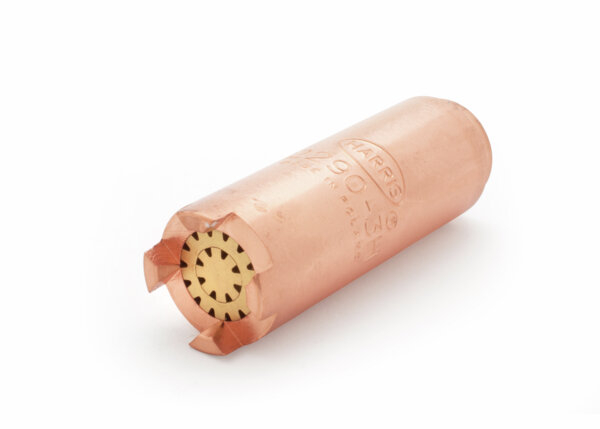

- Engraved with model number and tip size for easy identification
- One year manufacturer’s warranty
Technical
| BTU/Hr Rating (Min. - Max.) - Mapp® | 204,000 - 552,000 |
| BTU/Hr Rating (Min. - Max.) - Natural Gas | 139,000 - 375,000 |
| BTU/Hr Rating (Min. - Max.) - Propane | 218,000 - 590,000 |
| BTU/Hr Rating (Min. - Max.) - Propylene | 201,000 - 545,000 |
| Compatible Handle Model Number | 43-2 V-315C |
| Compatible Mixer Model Number | E2-43 |
| Compatible Tip Tube Model Number | 2393 series |
| Construction | One-piece tellurium copper |
| Duty | Heavy |
| Fuel Gas PSIG (Min. - Max.) | 8 - 25 |
| Fuel Gas SCFH (Min. - Max.) | 85 - 230 |
| Gas / Gas Service | Natural Gas Propane |
| Oxygen PSIG (Min. - Max.) | 25 - 70 |
| Oxygen SCFH Total (Min. - Max.) | 340 - 920 |
| Recommended Items/Accessories | Standard One-Piece Tip Cleaner - Model C-9 - PN 9000156 Nipple - Model 2357-3 - PN 9000738 Adaptor 1/4 NPTF X 1/4 in. NPTF X 1.12 in. - PN 8800985 Nipple - Model 2357 - PN 9000734 Coupling - Model 2543-3 - PN 8800584 Coupling - Model 2527 - PN 9000720 |
| Special Instructions | For maximum flow and BTU output use 3/8 in. hose On continuous duty, withdrawal manifolding of cylinders may be required Multiple arrangements of 2290-H Heating Tips can be assembled using Harris coupling 2327, nipple 2357 and standard 1⁄4 in. pipe fittings when wider bands of heat are necessary. Capacity of 43-2 heating torch is 5 No.1-H tips. Use coupling 2543-3 to couple 2393 Tip Tubes for extended reach. For extended tube and tip life, use adaptor 2357-3. |
| Style | Heating |
| Tip Size / Number | 3H |
Applications
| Typical Application | Fabrication Shipbuilding |
