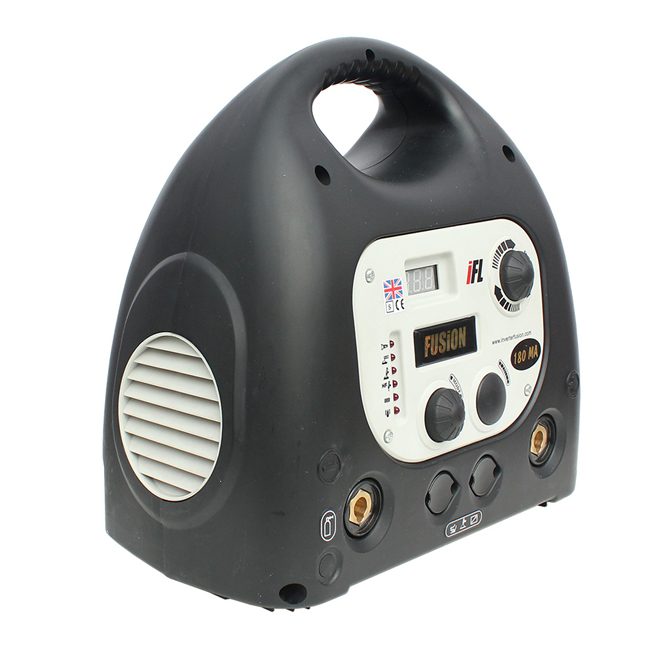

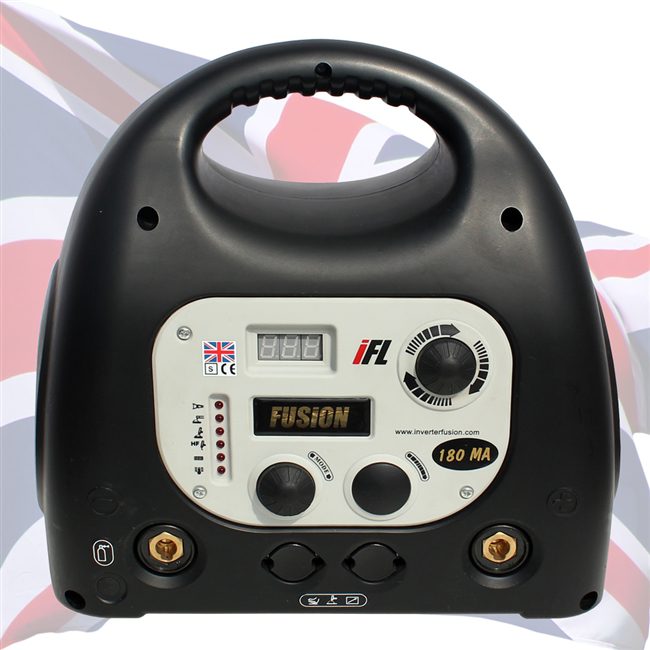

Fusion 180MA

SKU: 312

£755.10  (£906.12 inc VAT)


FREE SHIPPING ON ORDERS OVER £100*
AVAILABILITY: USUALLY SHIPS IN 24 HOURS

In Stock

Quantity

IFL Fusion

Our IFL Fusion professional range is manufactured at our factory in Honiton, East Devon. All machines are powered by planar technology for superior performance and reliability, and are covered by a comprehensive 3 year parts and labour warranty. Each machine is available in a 110v or 240v variant, ideal for site or workshop use.

  • 100% duty cycle for MMA welding.
  • Powered by planar technology.
  • MMA welding for electrodes up to 4mm.
  • Lift-TIG capability.
  • Specially developed MSD automatic arc force and digitally controlled anti-stick down and hot start programmes.
  • Precise controls allow easy electrode ignition, even with difficult materials.
  • Robust toughened nylon case for harsh industrial environments: protection class IP23.
  • Industry standard sockets: 35-50mm.
  • Working temperature range of -10°C to +40°C for most climates.
  • 3 year parts and labour warranty.
  • Detailed user manual.
  • Telephone technical support service by engineers.
  • Generator friendly – generators fitted with an AVR provide best results.
  • Forced-fan wind tunnel prevents internal dirt contamination.
  • Digitally controlled automatic arc force for exceptional welding.
  • Future-proofing – Controlled by a digital processor to update software.

Product Brochure:
Click to download


Three year parts and labour warranty
Made in Britain
Planar Technology

Award Winning Design

Our Fusion welding machines feature a robust shell constructed from toughened nylon, providing outstanding protection and durability. All machines are extremely lightweight with optimum weight distribution for stability, and ergonomic shape with carry handle making them easy to manoeuvre. Furthermore, the control panel features simple controls for easy operation while working or wearing gloves.


Available To Hire

Because we manufacture our machines, we always have stock. We use our own products and have many machines available for hire. If you only require a machine for a limited period or project, why not speak with our team about hiring a machine? This can be far more cost-effective than buying one. For all hire enquiries, please call our sales team on
01404 549 791.


Free Demonstration

If you’re considering purchasing a Fusion welding machine, why not try before you buy? Our engineers are always happy to give a free demonstration, which will give you the opportunity to get answers to any questions you may have, and you will see the machine in action. To book an appointment, please call our sales team on
01404 549 791.


Technical

This Welder Comes With The Following Specifications

  • Input Voltage AC 50/60Hz +/- 15%: 230V
  • Typical Input Fuse Rating (Amps): 22 SB
  • Recommended Generator Rating (KVA): 7
  • MMA Power Output (Amps): 20-180
  • TIG Power Output (Amps): 10-180
  • 100% Duty Cycle @ 20°C (MMA): 180 Amps
  • 100% Duty Cycle @ 20°C (TIG): 180 Amps
  • Max Open Circuit (Volts): 97
  • Power Factor @ 100%: 0.71
  • Efficiency @ 100%: 0.94
  • Weight: 8 kg
  • Start Current Control: Pre Set
  • Digital Power Output Meter: Yes

Product Brochure: Click to download

Machine With Additional Parts

I F L Fusion 180 M A Machine
