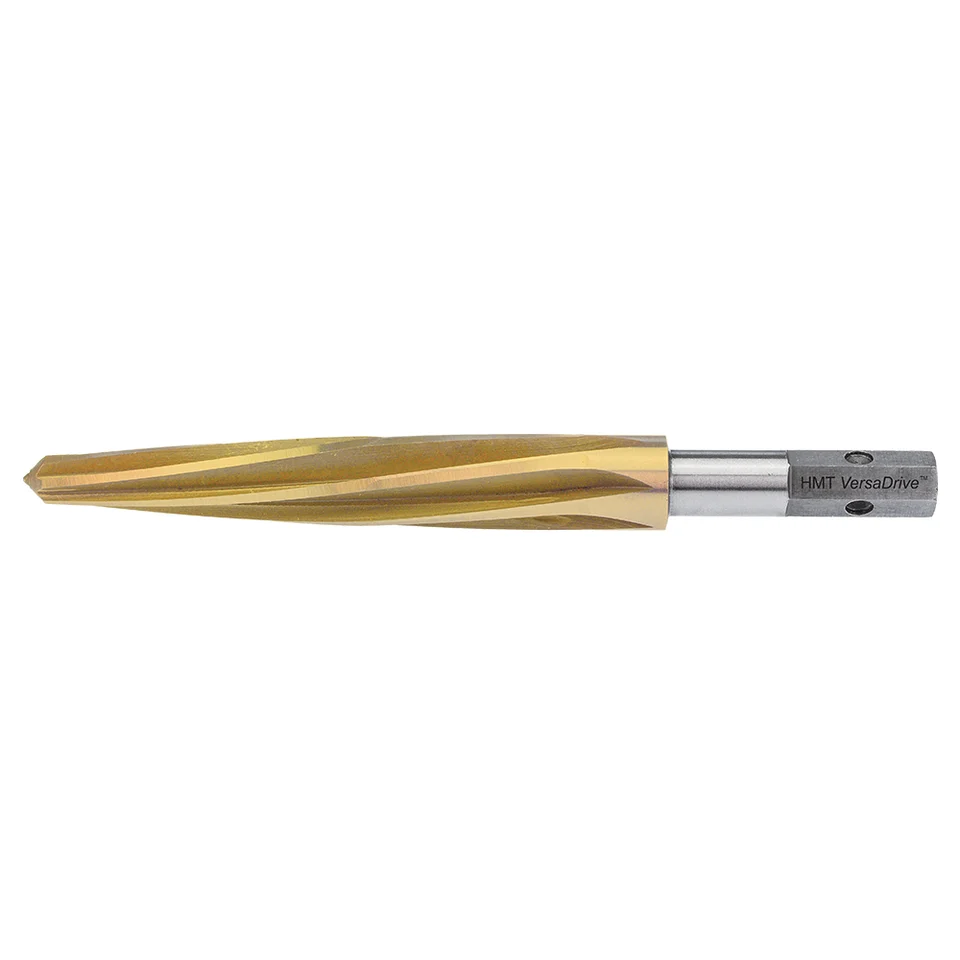

VersaDrive® Impact Reamer – Metric (501030)
Keep the Job Moving when a connection hole is undersized
VersaDrive reamers are the perfect hole alignment and enlarging tool for metalworkers & steel erectors for keeping the job moving when a hole is misaligned or the incorrect size for the fixing.
Featuring a specially designed 6 flute cutting geometry and Titanium coating, VersaDrive Reamers are fully Impact rated and perform fastest when used with an Impact Wrench providing ultimate cutting performance with virtually no powertool kickback.

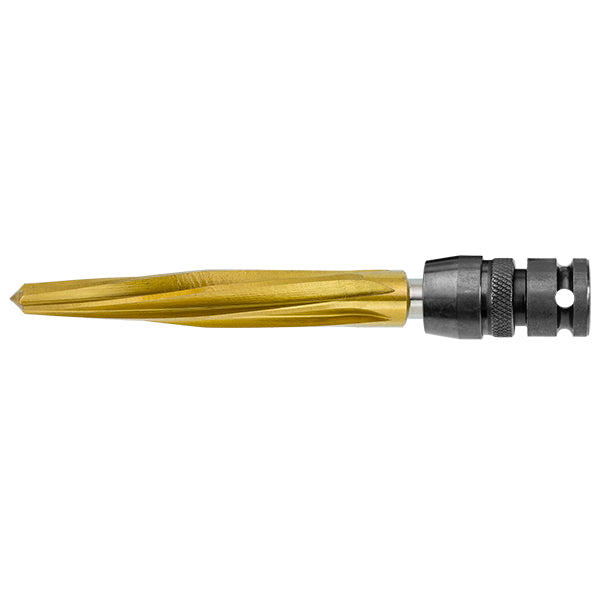

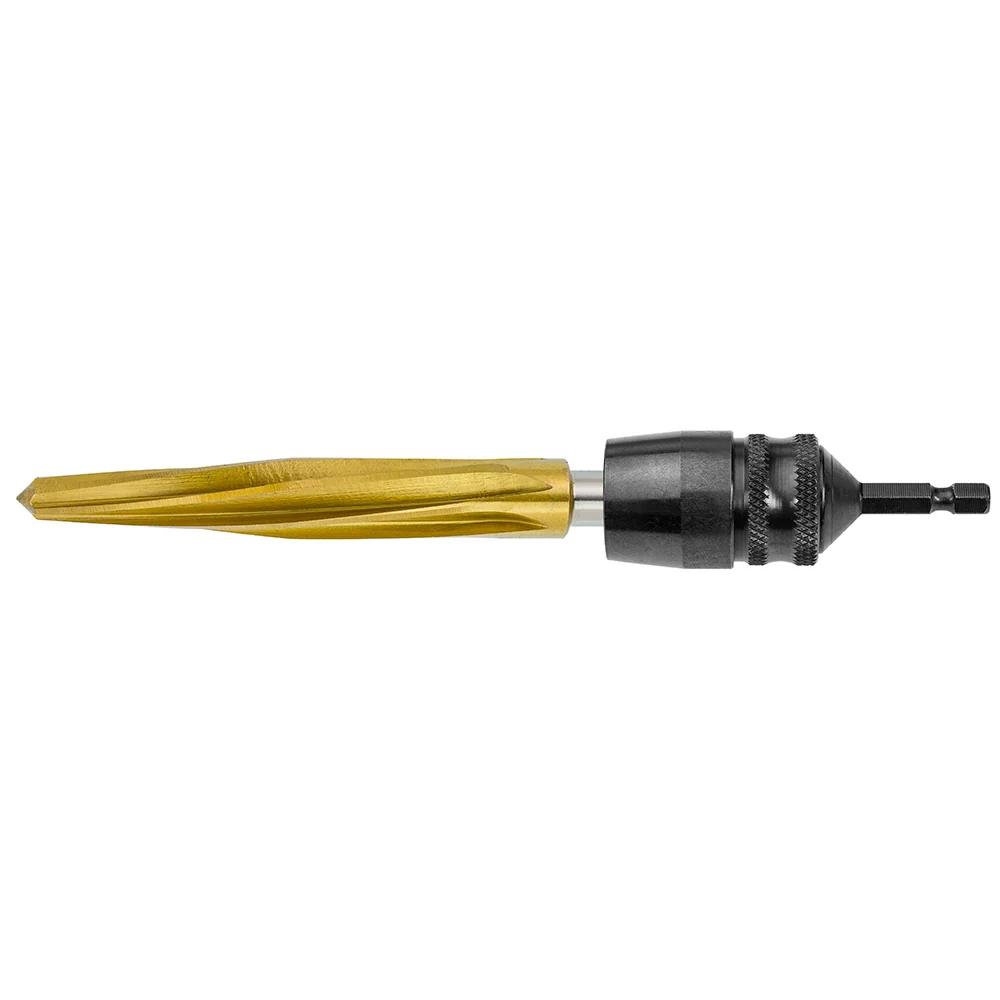

VersaDrive Reamers have a patented nonslip, Hex shank suitable for use in any standard 1/2” drill chuck for Pistol Drills or used with a VersaDrive Rapid Lock adapter for use in a wide range of powertools such as Magnetic Drills.
Product Benefits

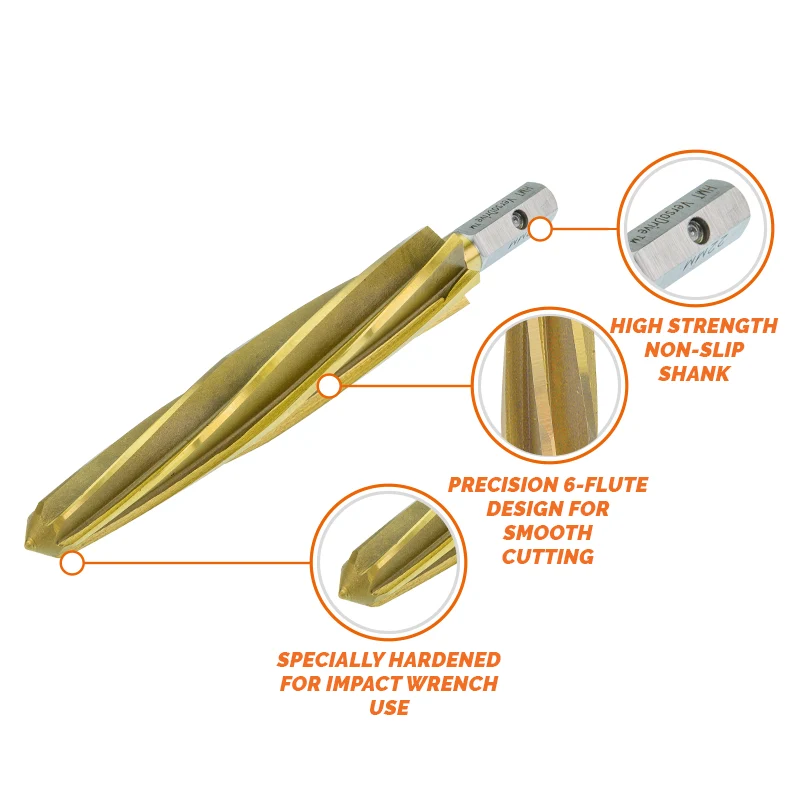

- Precision 6-flute design for smooth cutting
- Edge cutting design for hole enlargement, giving much better results that a drill bit
- Industrial grade Titanium Nitride coating reduces heat buildup and burn-out
- Use on Impact to prevent dangerous kickback caused by handheld rotary tools
- Heavy-duty hex shank design for secure non-slip operation
- Quality results on stainless steels and Inox – rotary application recommended
- VersaDrive patented shank and modular adapters provide unbeatable jobsite flexibility
- Impact-rated due to dual hardening process – allows up to 15X faster speed than traditional methods
Quick Guide

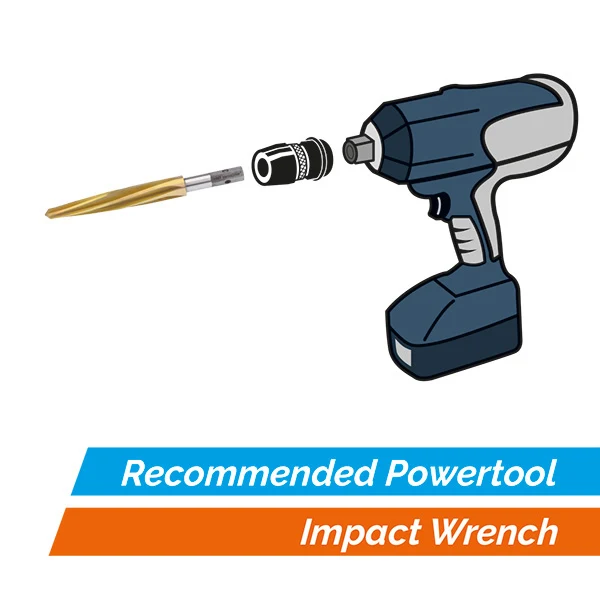

- For fastest performance use on Impact Wrenches & Impact Drivers
- Not recommended for Impact use with flame, plasma or laser cut holes
- For flame, plasma or laser cut holes use with a Magnet Drill
- Reamer should be rotating before starting the cut & steady feed pressure used throughout
- For materials thicker than 20mm use of VersaDrive MAX Reamers is recommended
Technical
Applications
- Identify the torque range (for the cutting tool) required using the data sheet in question 2. (Example 16mm hole in 12mm plate – Guide torque 340Nm)
- Identify the torque range on your impact wrench or impact driver
- Look up model number to see torque range
- Check if there are speed/torque settings on the tool - Example
- Select the closest torque setting on the impact wrench/impact driver ABOVE the torque recommendation (this is for the following 2 reasons) - Higher torque will only be used on demand - Too low torque will lead to the tool jamming or even snapping as the flutes stop cutting and the torque transfers to the tool
Videos
FAQs
Can I use my impact wrench with VersaDrive Reamers
Yes, VersaDrive Reamers are specially hardened and designed with a unique geometry which allows them to be effectively used with Impact Drivers and Wrenches.
What is the maximum size I can increase a hole with one Versadrive reamer
The maximum size hole enlargement we recommend for each diameter of reamer is 2-3mm. This is because the as the diameter of the reamer increases the cutting forces get greater and increase the tool wear and load on the tool itself which increases the risk of wear or even failure
Can I Ream laser/flame cut holes using Impact
Reaming Flame Cut or Laser Cut holes or even punched holes with reamers using Impact wrenches may significantly reduce the tool life due to the surface hardening that takes place around the perimeter of the hole. Often these holes are roughly cut or may not be parallel which is also likely to cause breakage. If possible, we suggest reaming the hole using a slow speed Magnet Drill or other drilling machine, to remove the surface hardness and ensure an accurate hole.
Can I use Versadrive Reamers for stainless and other hard materials.
Versadrive eamers are suitable for reaming stainless steel when used at lower RPM speeds in rotary drills. They can be used for drilling Stainless Steel with an Impact wrench, however reduced life expectancy would be expected. TurboTip Reamers are not intended for use on Hardox and other wear plate materials. For optimum tool life We recommend using reduced rotary RPM speeds, higher pressure and increased lubrication.
Why has my reamer chipped on the flutes
This is classic sign of “chatter” caused by the reamer vibrating unevenly against the workpiece rather than smoothly cutting. To avoid this, gently increase pressure (without forcing or jamming the tool) to ensure the reamer is cutting equally at each point of the circumference,
Which lubricant do you recommend for Reamers
Can I use my impact wrench to enlarge holes in Stainless Steel using the VersaDrive or ImpactaMag Reamers
Yes, although we recommend the use of a low speed, rotary drill or Magnet Drill for optimum life expectancy in stainless steel. Reamers can be used on impact for Stainless steel to speed the job up but reduced life expectancy would be expected
Can I use HMT Reamers to ream through misaligned (half) holes
Yes, this is a typical application for VersaDrive or ImpactaMag reamers. The Tapered reamer will follow the path of the top hole to open up the overlapping hole, along the fixing to pass through both plates
When will a reamer go blunt
Typically speaking if the tool has blunted sooner than you would have expected it to, the typical cause is using too high an RPM for the particular application causing the tool to wear and blunt prematurely. When used at recommended RPM and torque limits and all best practice is followed, you should expect excellent tool life.
Are these reamers likely to break
Reamers will generally only break if too high feed pressure (force) has been used, causing the reamer to jam in the hole, and ultimately to break.
Can VersaDrive/ImpactaMag Reamers be resharpened
They can be resharpened by dedicated resharpening companies using tool grinding machines. We do not offer this service directly but we can recommed resharpening companies
How can i access further technical support or submit a warranty claim for my VersaDrive Reamer
Please click here to access our product support area and warranty claim forms. If making a warranty claim please fill in the appropriate warranty form, providing us with as much of the requested information as possible and one of our technical team will review the feedback and be in touch shortly.
