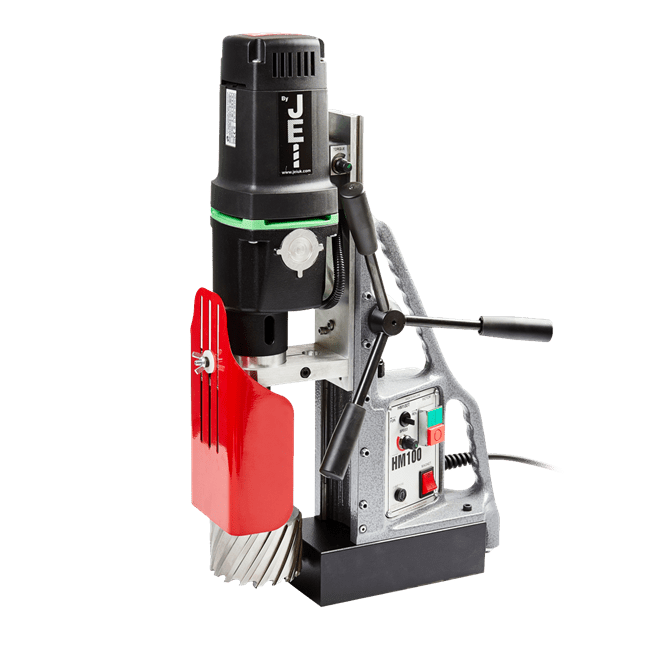

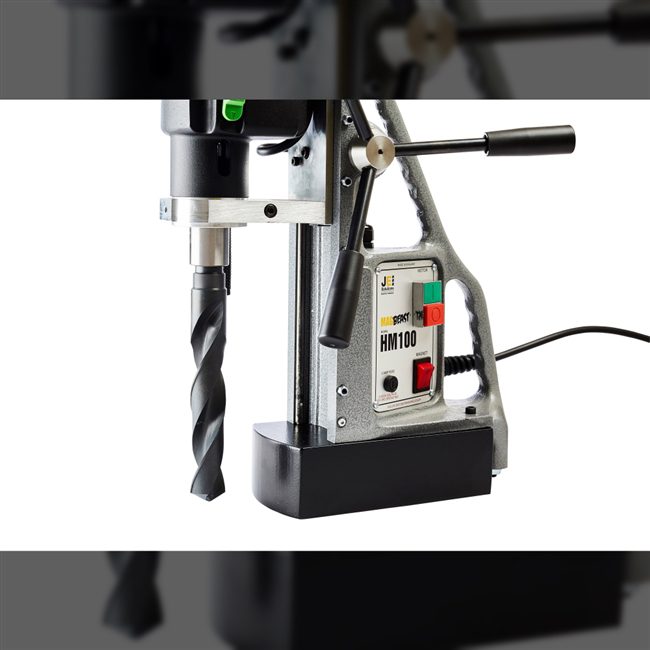

JEI MagBEAST HM100T 240 Volt Magnetic Drill

The complete 3 morse taper magnetic drilling and tapping model also capable of cutting, reaming, counterboring and threading holes.

  • Heavy duty 1800w motor
  • 2 speed variable gearbox with reverse
  • 250mm total drill travel
  • Sleek, ergonomic design

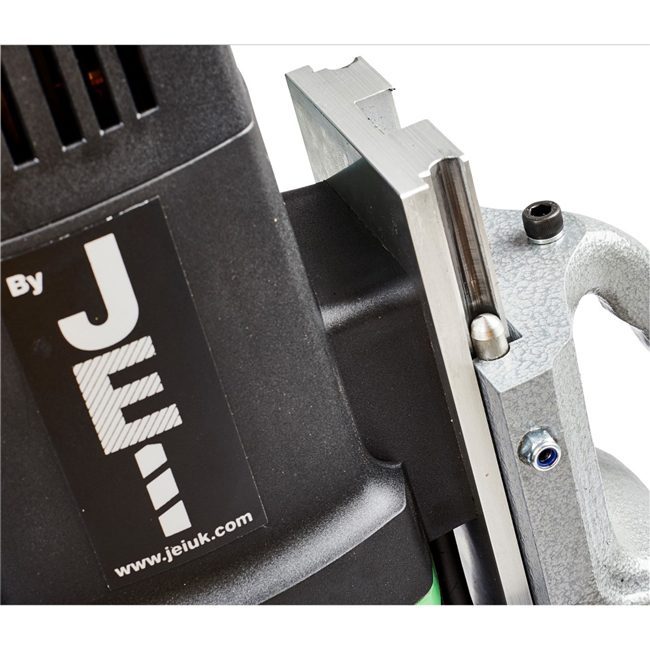

  • Maintenance friendly twin slide rails. No wearing parts and adjustment free operation
  • Fixed safety guard

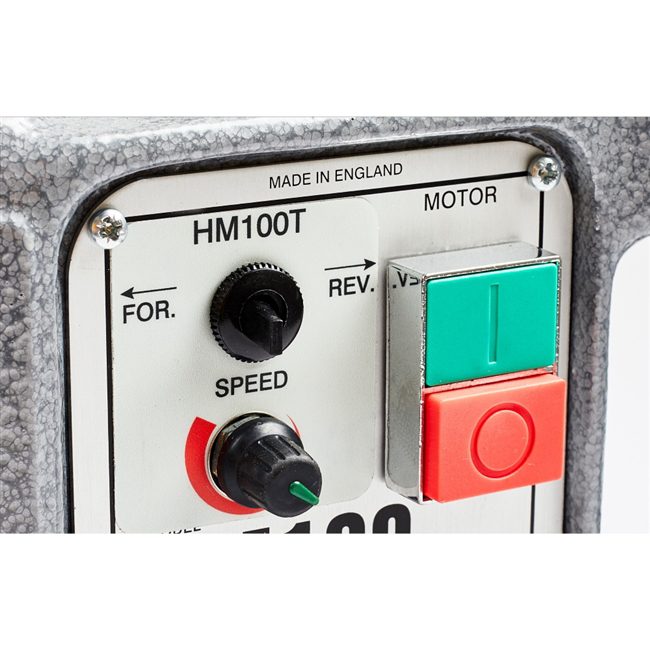

  • Simple and effective control panel
  • Powerful electromagnetic base
  • Optional 360° swivel base

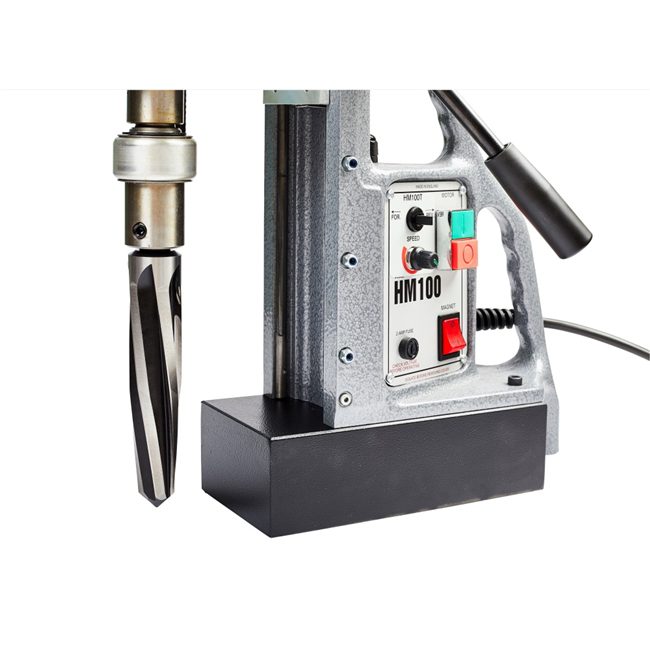

Up to 39 millimetre reaming capacity

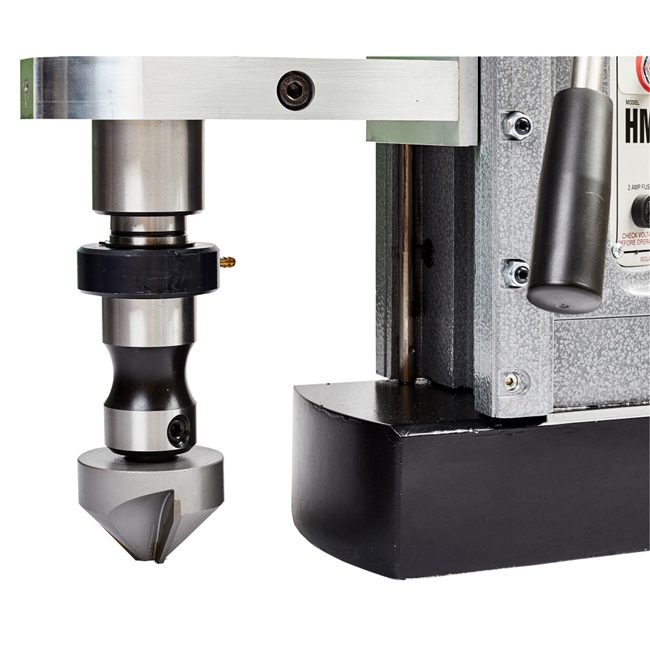

Up to 55 millimetre countersink

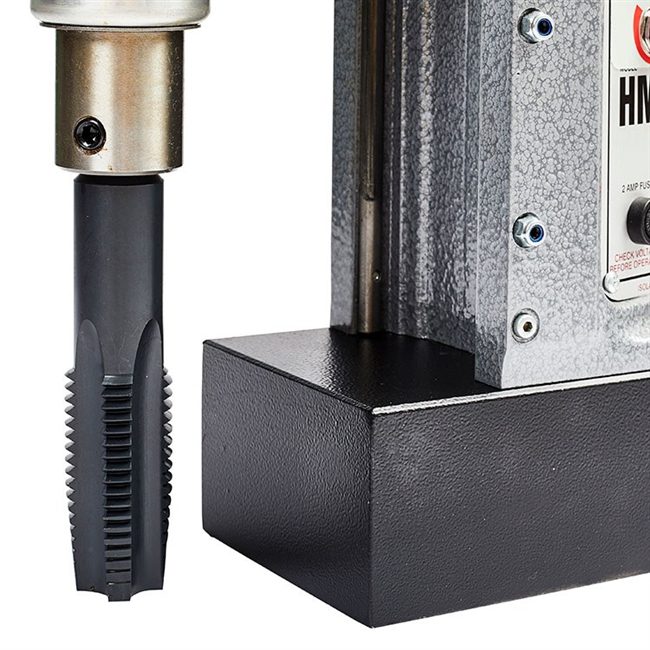

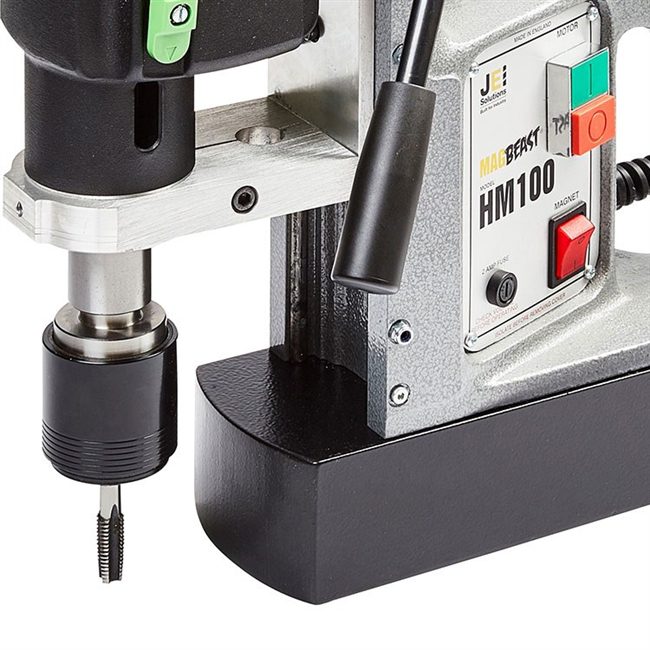

M30 tapping capacity

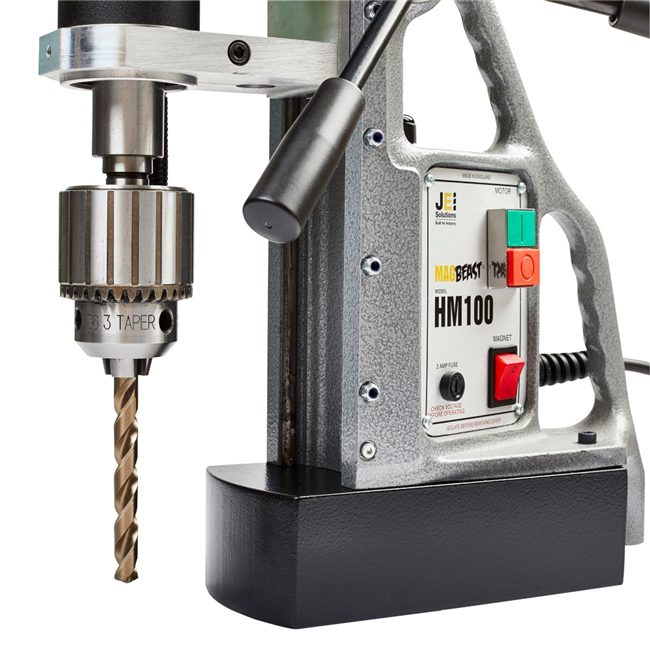

32 millimetre twist drill capacity

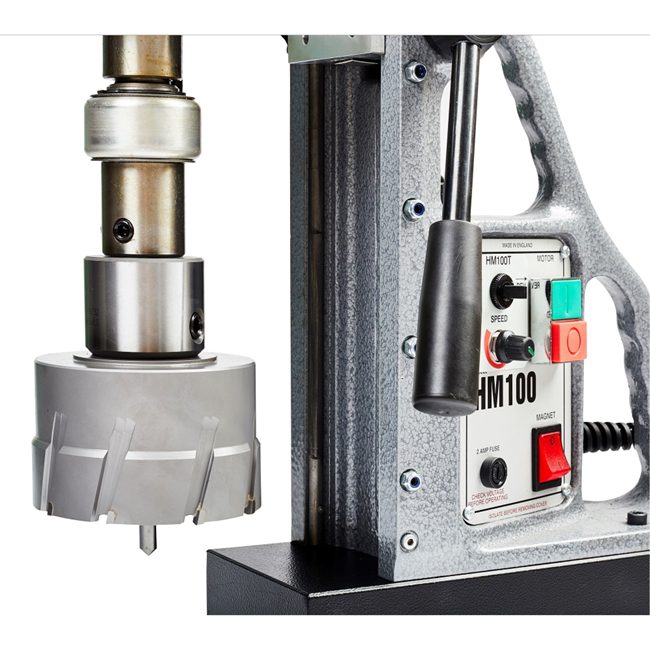

Between 10 and 100 millimetre core drilling


Product Brochure




We are the approved Southwest distributor for many welding brands, and hold a large range of products in stock. Come and visit our showroom.


Technical Specifications

  • Model: MagBEAST HM100T
  • Spindle: MT3
  • Weight: 23.5kg (29kg Packaged)
  • Max Stroke: 250mm
  • Cutter Capacity: 100mm ø x 6" Depth
  • Twist Drill Capacity: 19 mm with 3MT Chuck / 32 mm with 3MT Twist Drill
  • Countersink Capacity: 55mm
  • Tapping Capacity: M30
  • Reaming Capacity: 39mm
  • Motor: 1800 W
  • RPM: 2 Variable Speeds (torque control) 60–140 / 200–470
  • Height: 450 / 700mm
  • Length: 345mm
  • Width: 190mm
  • Magnetic Base Dimensions: 212mm x 102mm
  • Magnet Deadlift: 2050kg on 1" Plate (20100 N)
  • Noise Level: < 90dB
  • Vibration Level: < 2.5 m/s²
