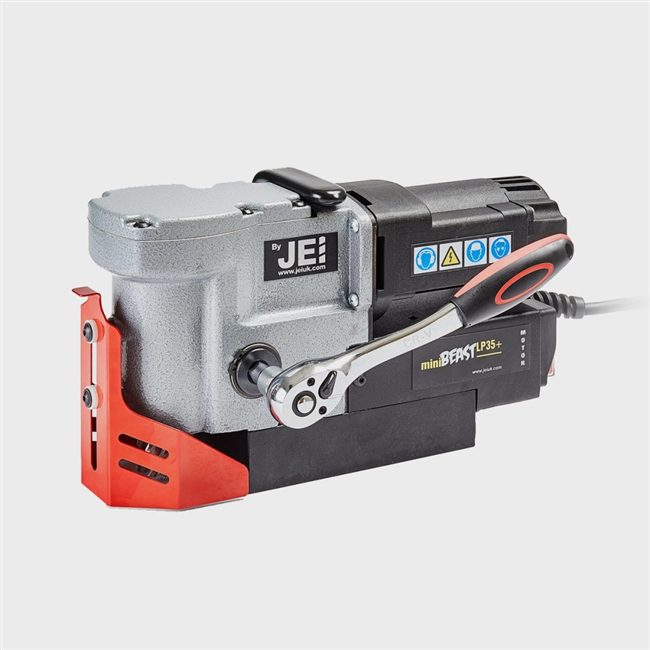

JEI MiniBEAST LP35+ 110 Volt Magnetic Drill

A premium low profile drilling machine, ideal for use with High Speed Steel (HSS) or Tungsten Carbide Tipped (TCT) cutters!

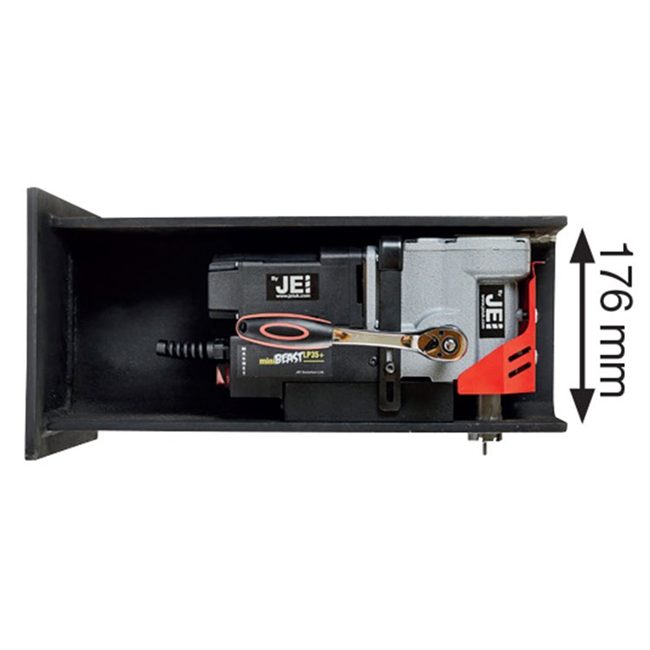

  • Ultra-low fixed working height only 176mm
  • Extremely low weight of just 9.5kg

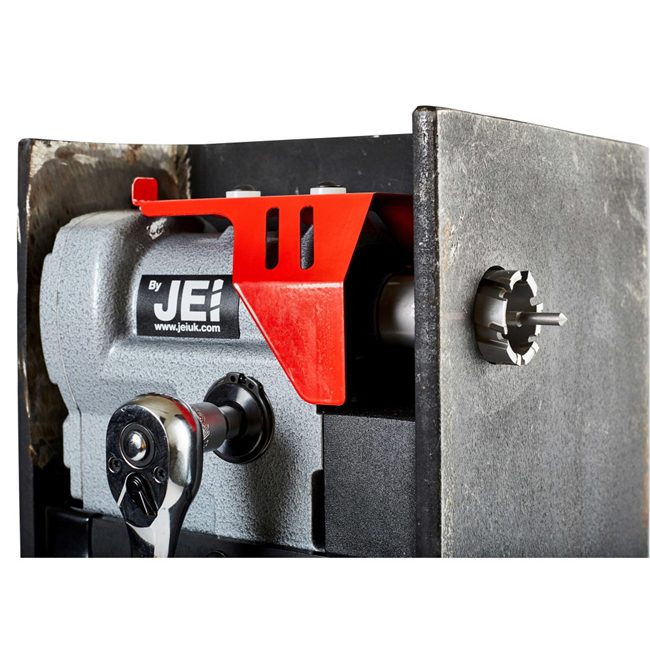

  • Compact design perfectly suited to space restricted areas
  • Maximum drilling diameter of 35mm with annular cutters
  • Will accept standard length (35 mm) TCT annular cutters
  • Positive quill drive for close tolerance holes

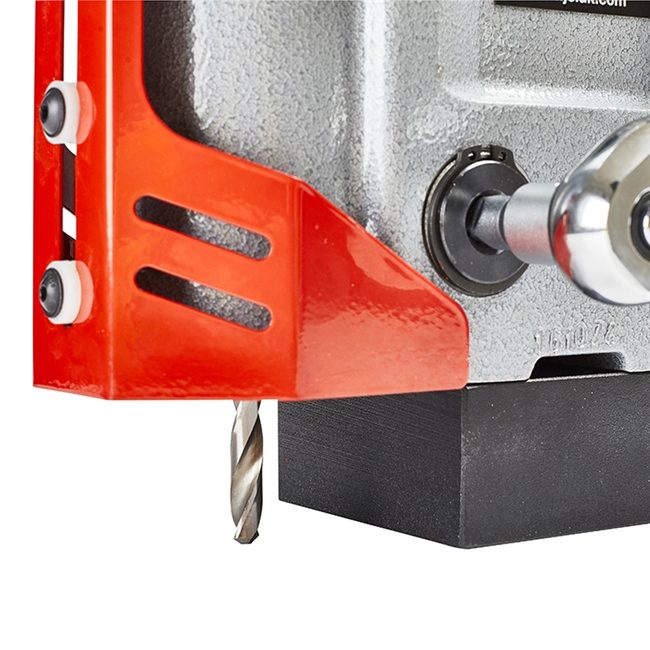

  • Accepts short series twist drills with 19.05mm (3/4″) weldon shank

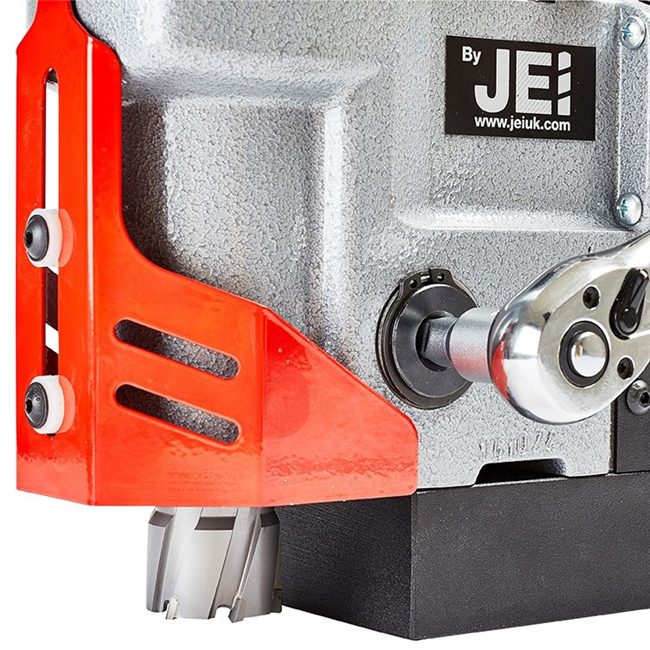

  • Integrated safety guard
  • Detachable feed ratchet handle can be fixed from either left or right side
  • Lifting handle for easy transportation

Up to 30 millimetre countersink
12 millimetre twist drill capacity
Between 10 and 35 millimetre core drilling



Product Brochure





Why JEI MiniBEAST?


Curious?

We are the approved Southwest distributor for many welding brands, and hold a large range of products in stock. Come and visit our showroom.

Technical

Technical Specifications

  • Model: MiniBEAST LP35+
  • Spindle: 19mm
  • Weight: 9.5kg (12.4kg packaged)
  • Maximum Drilling: 35mm
  • Maximum Drilling Depth: 20 mm with HSS Turbo Steel annular cutter. 32 mm with Turbo Tough TCT annular cutter
  • Twist Drill Capacity: 12mm ø with optional Turbo twist drills
  • Countersink Capacity: 30mm
  • Motor: 920 watts
  • RPM: Single Fixed Speed (no load 520 RPM, loaded 350 RPM)
  • Height: 176mm
  • Length: 380mm
  • Width: 147mm
  • Magnetic Base Dimensions: 80 mm x 165 mm
  • Magnet Deadlift (on 25mm plate): 910 kg on 1" Plate (8900 N)
  • Noise Level: < 90dB
  • Vibration Level: < 2.5 m/s²
