Jasic EVO TIG 200 DC PFC Package C/W Case & Torch

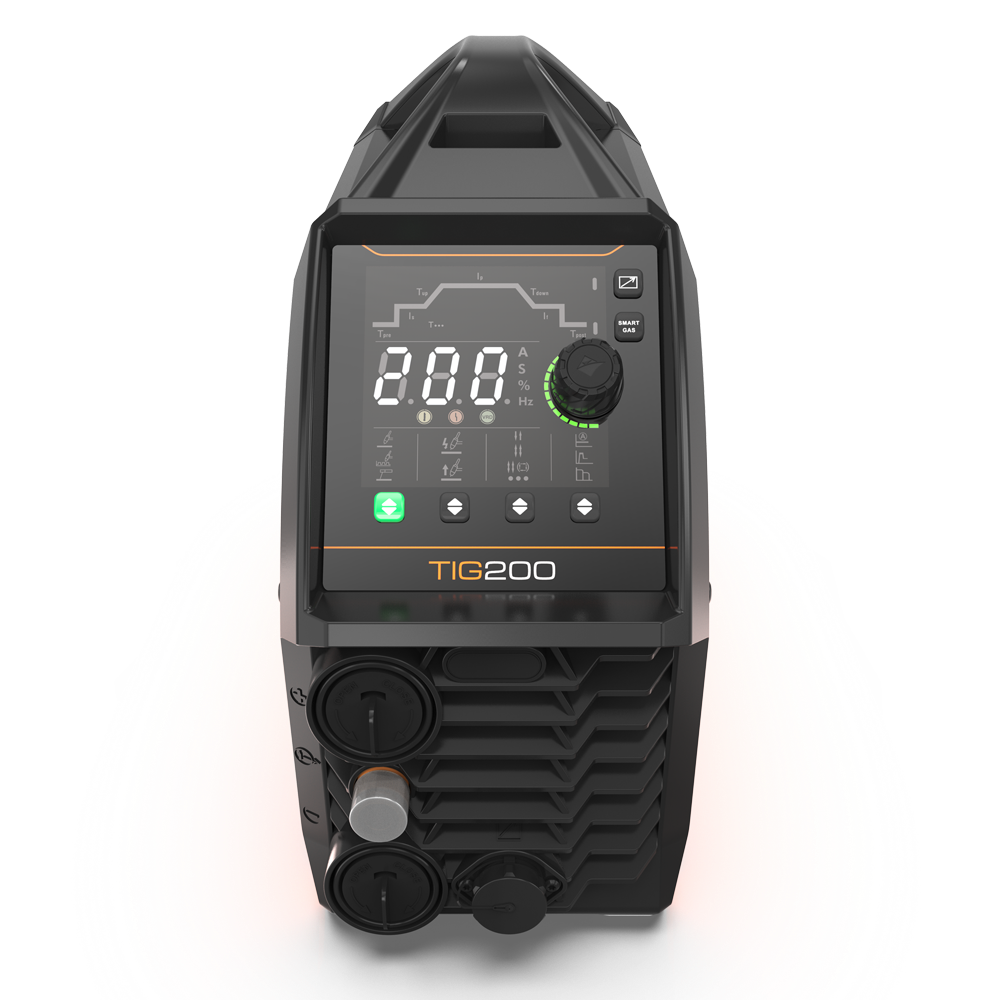

Jasic EVO Tig 200 PFC Inverter Welder
Key features include:

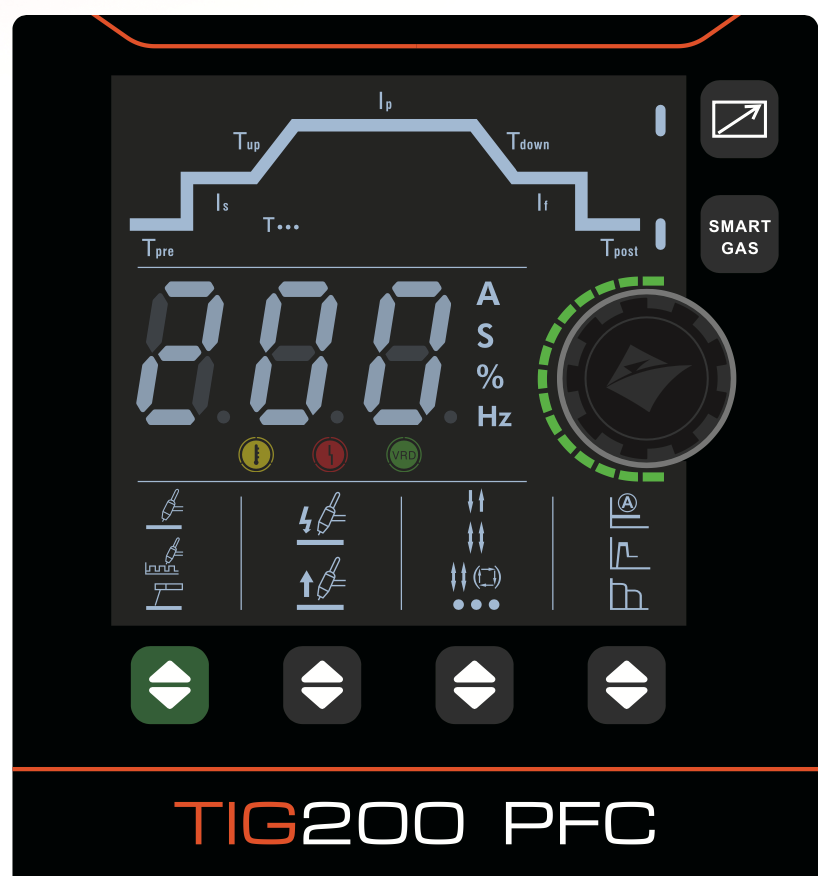

- ClearVision technology: a vivid colour digital display panel which makes setting parameters, even in the darkest areas, a breeze.
- Adaptable wide input voltage range: Allows the machine to run on any input voltage between 95V & 265V, meaning this machine can be used in the workshop or on-site.
- Smart DC lift TIG: Weld carbon and stainless steel with the built-in DC lift TIG capability (optional accessory TIG torch required).
- Full featured DC Tig parameters.
- Flexible remote control solutions.
- Power factor correction (PFC)
- Quick factory reset; auto sleep mode.
- Smart gas for optimised shielding gas consumption.
- Fan on demand.
- Voltage reduction device for improved safety.
- Ovecurrent and overheat protection.
- Generator Friendly *Generator must have AVR* – Recommended generator size – 7kVA.

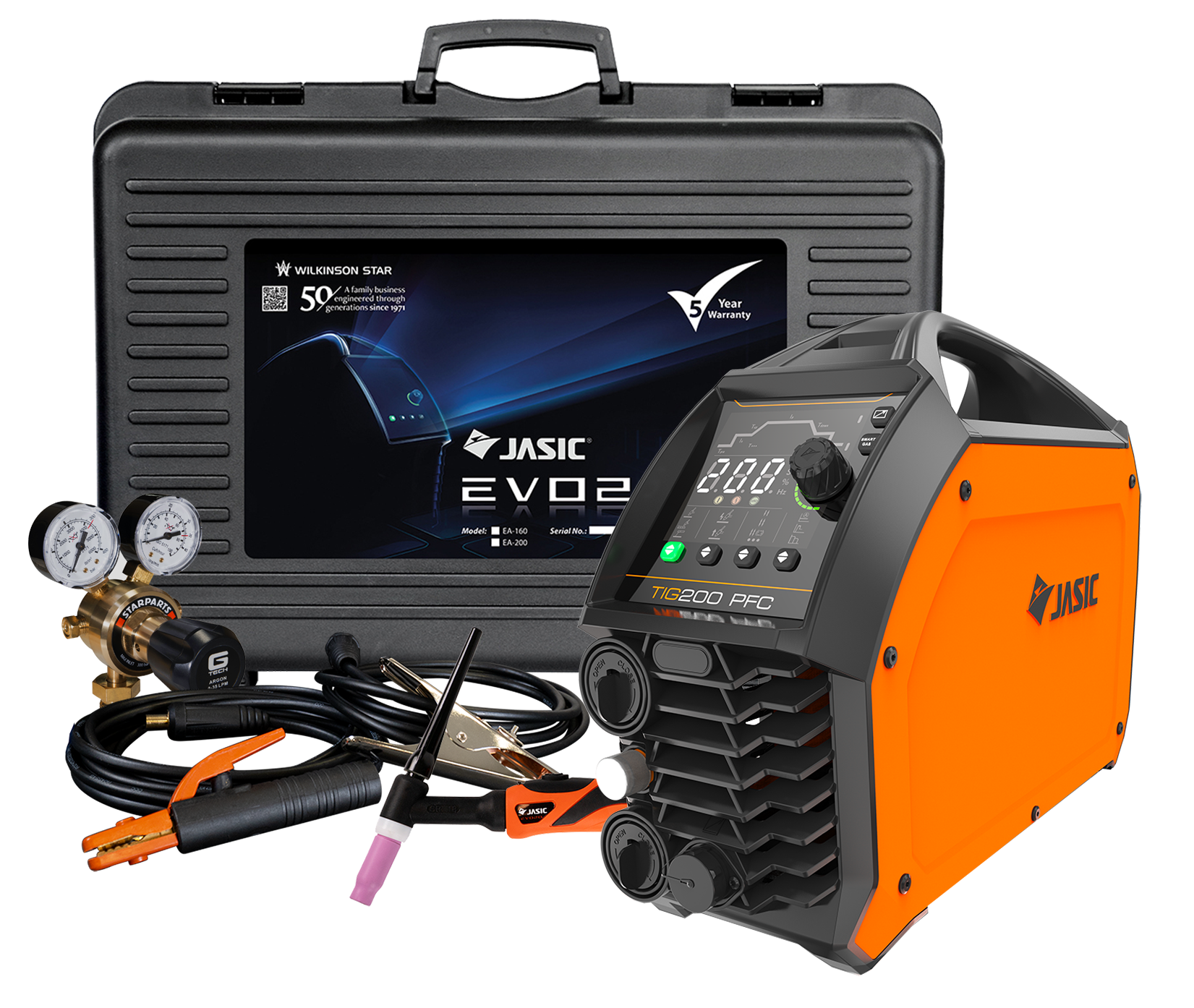

What’s In The Box?
- Tig Torch (4m)
- Earth Return (3m)
- Gas Hose
- Argon Regulator
- Protective Case
Curious?
We are the approved Southwest distributor for many welding brands, and hold a large range of products in stock. Come and visit our showroom.
Technical
Technical specifications:
- Input voltage: 95V - 265V
- No load voltage: 68V
- Rated input power: 240V 4.5kVA / 110V 3.4kVA (varies somewhat, dependent on process)
- Current range MMA: 110V 10A - 120A / 240V 10A - 180A
- Current range TIG: 110V 5A - 160A / 240V 5A - 200A
- Duty cycle (40C ambient temperature): 25% at 200A
- Efficiency: 84%
- Power factor: 0.99
- Idle state power: <33W
- Protection class: IP23S
- Insulation class: H
- Dimensions: 453MM x 150MM x 313MM
- Weight: 8.97KG
