Lincoln LF-56D Feeder
In Stock

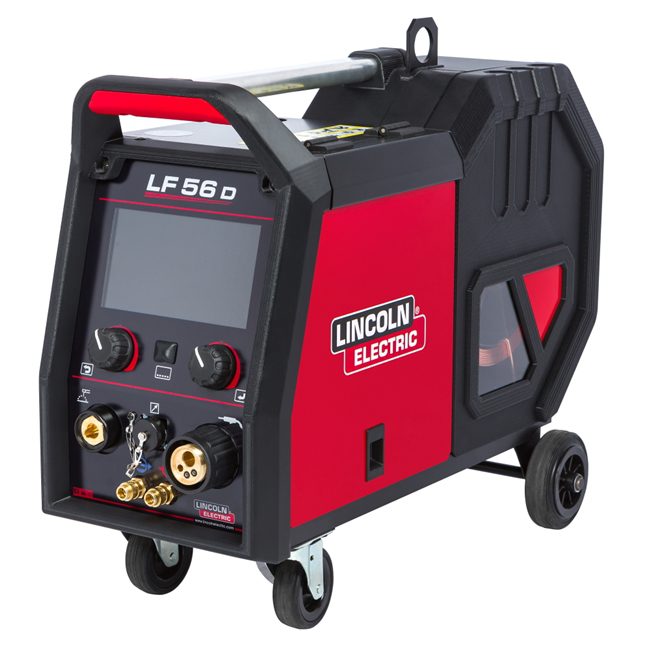

Lincoln Electric LF56D Wire Feeder
The Linc Feed digital wire feeders are specifically designed for use with the Powertec iS & Speedtec power sources. They combine easy handling and control by the welder with perfect wire feeding. Two versions are available, standard LF52D for basic use with analogue controls, or the advanced LF56D for more demanding applications with digital display. These help the user to fulfill any welding needs possible.
Specification
- 4 individually driven rolls for extremely stable wire feeding for various wire types
- Perfect feedability, four roll drive system with a powerful motor
- Small, rugged and easy to handle with bright digital displays
- Aluminium housing for a long service life
- Big roll diameter (37 mm) for optimal wire feeding
- Optimised wire spool installation, inspection window and lifting eye
- Simple, tool-free roll change
- Factory-fitted with rolls for 1,0 mm and 1,2 mm steel and stainless steel
- Equipped with wheels as standard
Technical
Specifications:
- Dimensions - 302 x 642 x 316mm
- Weight - 17.7Kg
- Max Rating - 500A
- Wire Feeder supply voltage - 40VDC
- Number of driven rollers - 4 rolls
- Feeder type - portable
- Max spool diameter - 300mm
- Communication technology - Digital
- Max rated output capable - 500A
- Max wire diameter (Solid) - 1.6mm
- Mac wire diameter (Cored) - 1.6mm
- Warranty - 3 Years
