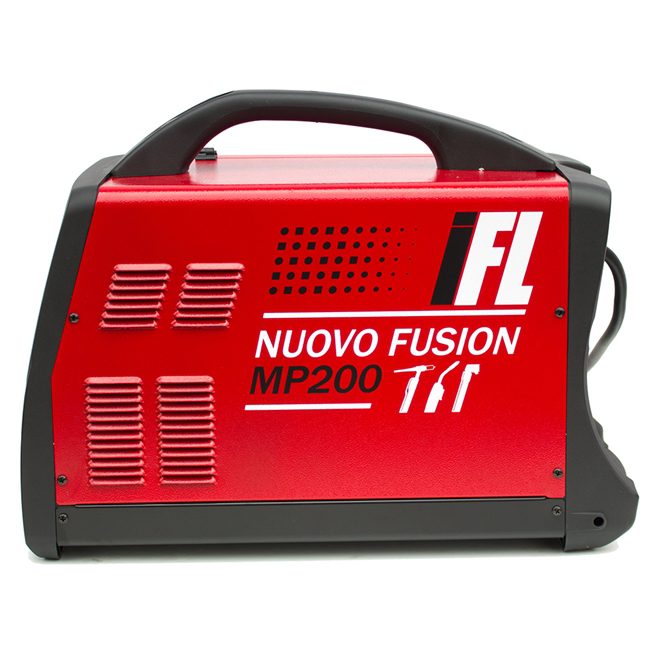

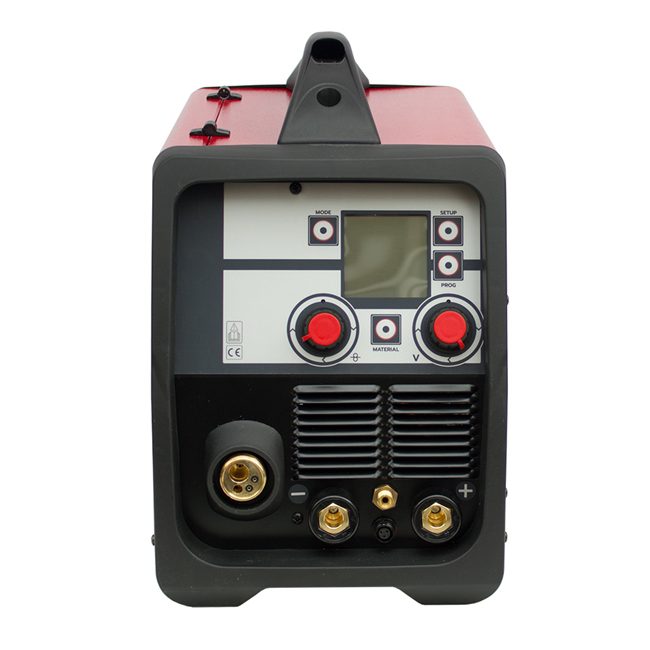

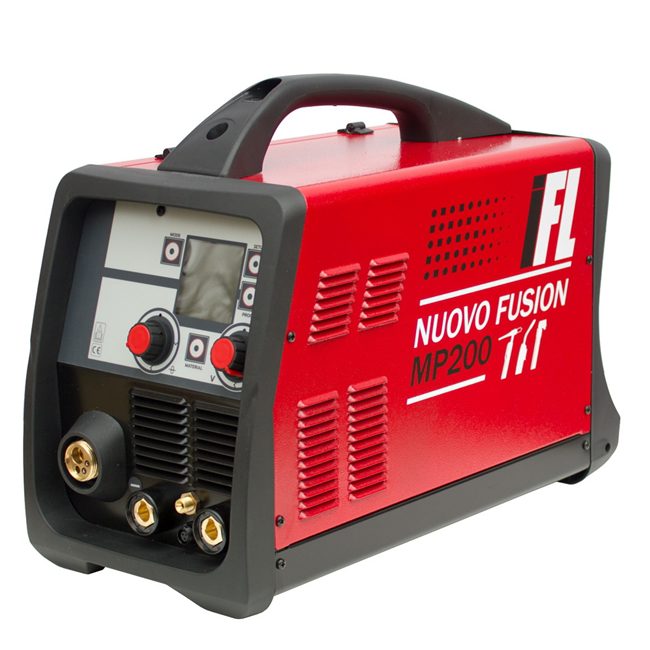

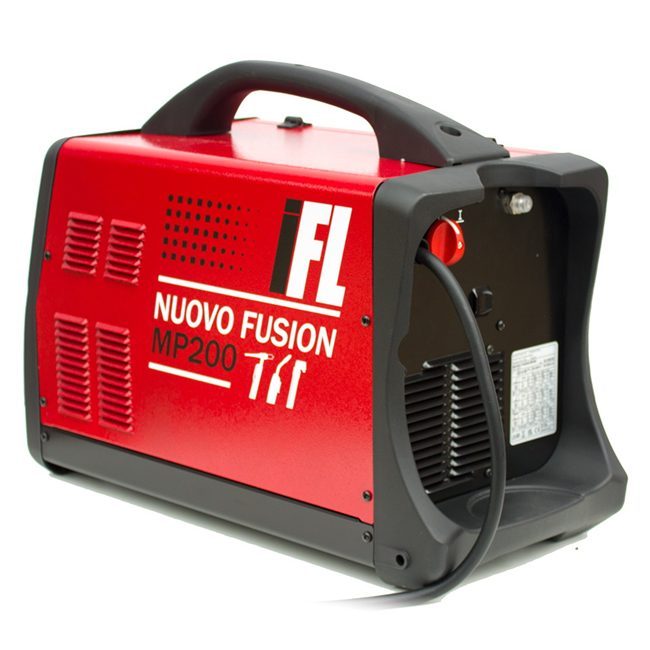

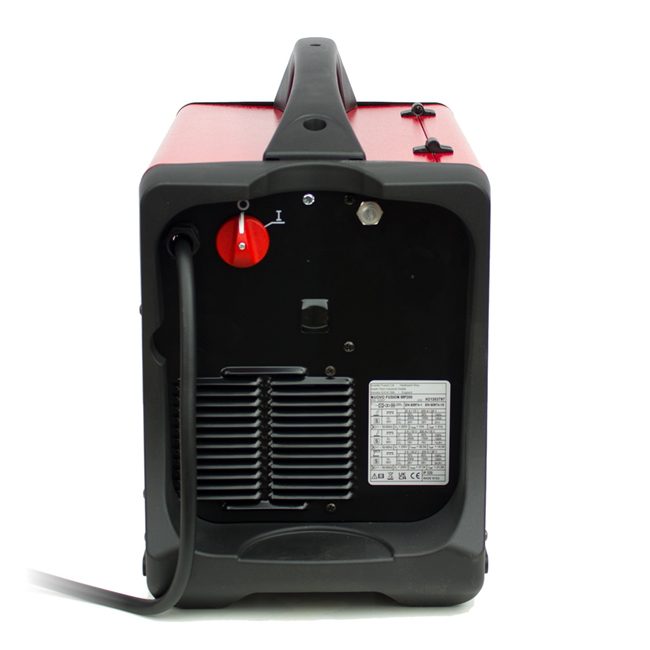

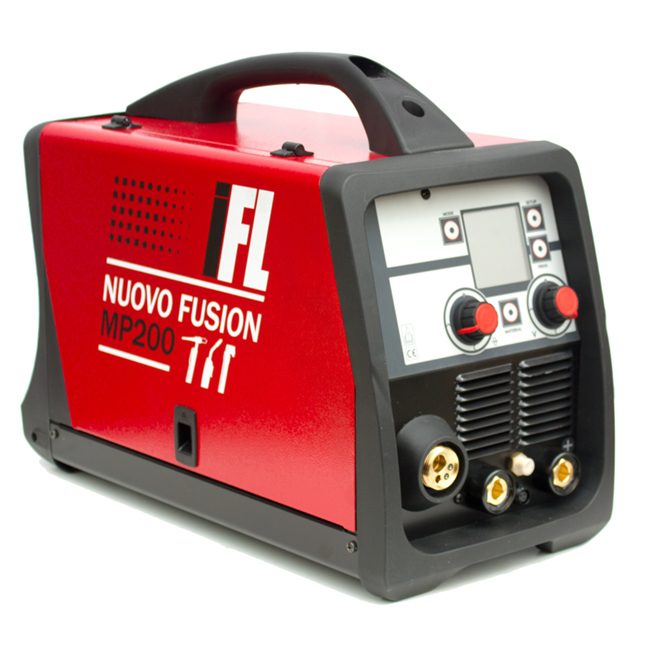

Versatile MIG, TIG and ARC Welder with Pulse Capability
Microprocessor-controlled multi process inverter welding machine capable of MIG/MAG (manual, synergic or pulsed), DC TIG (continuous or pulsed) and Arc/MMA welding. The large 3.3″ display shows all the welding parameters, and makes their setting easy and intuitive. In synergic MIG/MAG welding, the microprocessor ensures easy and quick setting of the programs; guaranteeing optimal arc stability and highest weld quality. Pre installed Aluminium, Stainless Steel CuSi and Steel programs.

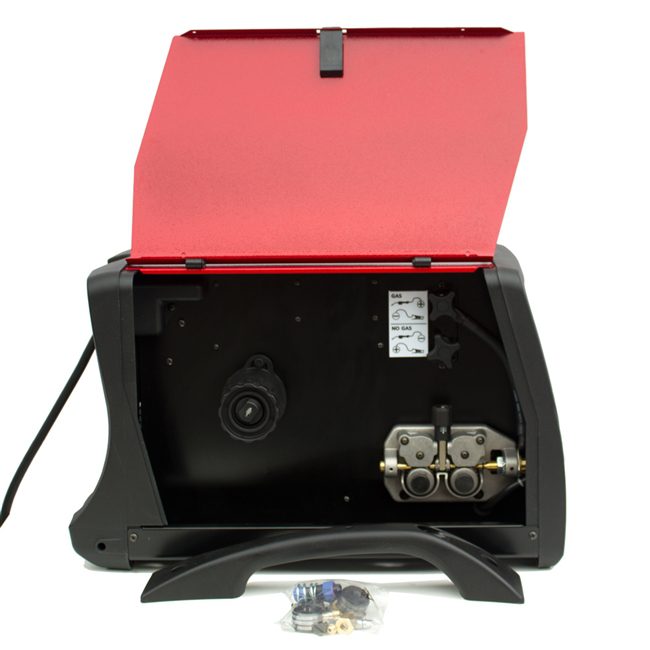

Its simplicity and versatility make it ideal for use in body shops or maintenance jobs. The MP200 model is lightweight and compact and is designed to accept wire reels with a diameter if 200mm.
- Multi Process – MIG, TIG & ARC
- Manual, Synergic & Pulsed Synergic MIG
- Pre-Set Synergic Curves
- Pre & Post Flow Gas Adjustment
- Soft Start, Burn Back & Adjustable Hot Start
- Slope Down With Crater Fill
- Excellent Thin Metal Welding Capability
- DC Lift Tig With Pulse & Frequency Control
- MMA With Hot Start, Arc Force & Anti Stick Capability
- 230v Single Phase
- 3 Year Warranty
Product Brochure:
Click to download
What’s In The Box?
This machine is supplied ready to install. You will need your own torch/cables, and there are other accessories available.
Nuovo Fusion MP200 In Action!
Curious?
We are an approved Southwest distributor for many welding products, and hold great stock. If you would like to try one, come and visit our showroom.

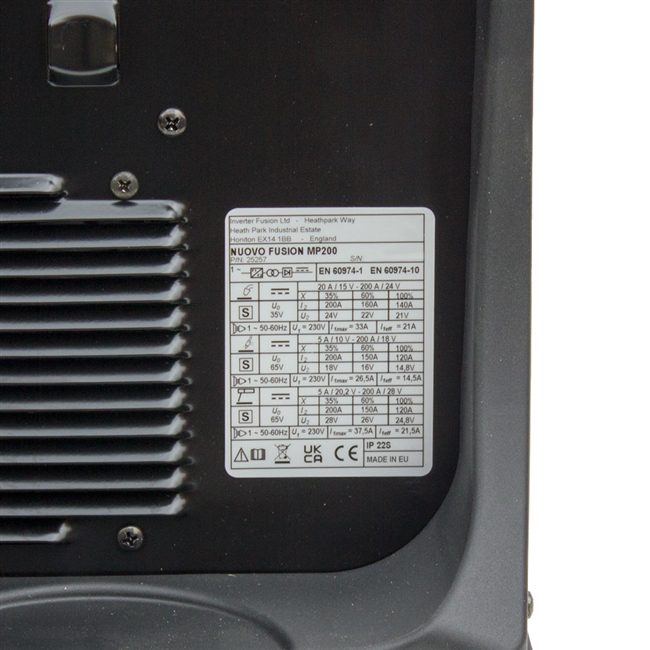

Technical
Arc/MMA Specifications
- Supply: 1PH, 230V
- Power 30%: 6 KVA
- Output: 5-200 Amps
- Duty Cycle: 200A at 35%
- Duty Cycle: 120A at 100%
- Microprocessor Control: Hot start, arc force and anti-stick
- Electrode Size: 1.6-5.0 mm
- Insulation Class: H
- Protection: IP22S
- Dimensions (LxWxH): 685x295x395mm
- Weight: 20Kg
MIG Specifications
- Supply: 1PH, 230V
- Power 30%: 6 KVA
- Output: 20-200 Amps
- Duty Cycle: 200A at 35%
- Duty Cycle: 140A at 100%
- Pulse Facility: Yes
- Synergic Control: Yes
- Max Wire Speed: 22 m/min
- Aluminium Wire: 0.8-1.2mm @ 5Kg / 200mm
- Steel Wire: 0.6-1.2mm @ 5Kg / 200mm
- Flux Core Wire: 0.8-1.2mm @ 5Kg / 200mm
- Stainless Steel Wire: 0.8-1.2mm @ 5Kg / 200mm
- Brazing Wire: 0.8-1.2mm @ 5Kg / 200mm
- Insulation Class: H
- Protection: IP22S
- Dimensions (LxWxH): 685x295x395mm
- Weight: 20Kg
TIG Specifications
- Supply: 1PH, 230V
- Power 30%: 6 KVA
- Output: 5-200 Amps
- Duty Cycle: 200A at 35%
- Duty Cycle: 120A at 100%
- Pulse Facility: Yes
- Insulation Class: H
- Protection: IP22S
- Dimensions (LxWxH): 685x295x395mm
- Weight: 20Kg
