Versadrive Step Drill Set + adapter
In Stock
CREATE HOLES IN SECONDS WITH THE FIRST STEP DRILL OPTIMISED FOR USE WITH IMPACT WRENCHES.

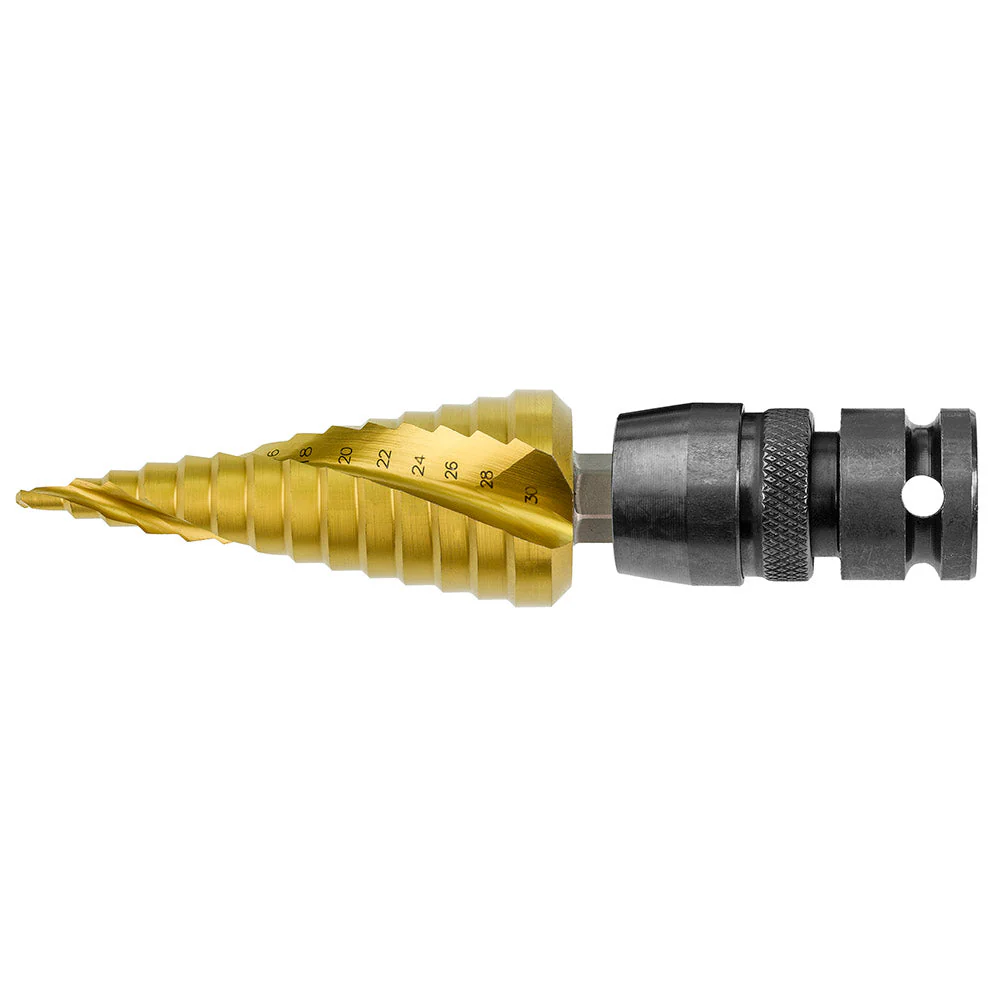

The promotional set is supplied with a FREE Versadrive 1/2″ Rapid-Lock Impact Wrench adapter.
- Spiral flute design
- Self-starting drill tip
- Fast, smooth drilling with an impact wrench or rotary drill
- Market-leading 5mm thick drilling capacity.
VersaDrive® Step Drills have a patented non-slip, Hex shank suitable for use in any standard 1/2″ drill chuck for cordless or pistol drills or used with a VersaDrive® Rapid Lock adapter for use in a wide range of power tools such as Magnetic Drills.
Product Benefits

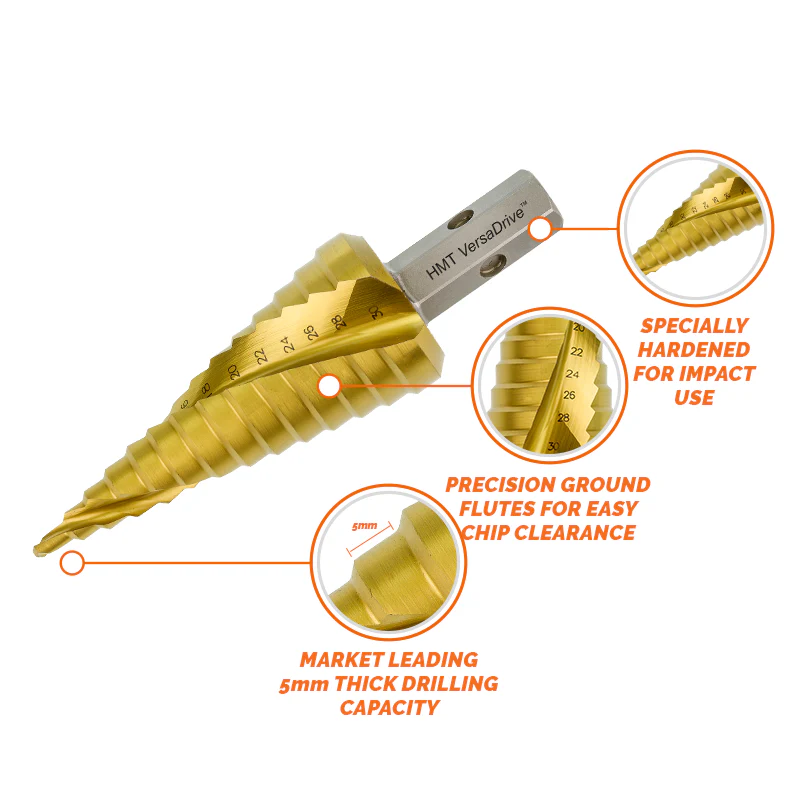

- Market leading 5mm step thickness, spiral flute design and size markings at each step
- 118º split point angle for easy hole start & pilot accuracy
- Industrial grade Titanium Nitride coating reduces heat buildup and burn-out
- Use on Impact to prevent dangerous kickback caused by handheld rotary tools
- Heavy-duty hex shank design for secure non-slip operation
- Quality results on stainless steels and Inox – rotary application recommended
- VersaDrive patented shank and modular adapters provide unbeatable jobsite flexibility
- Impact-rated due to dual hardening process – allows up to 15X faster speed than traditional methods
Quick Guide

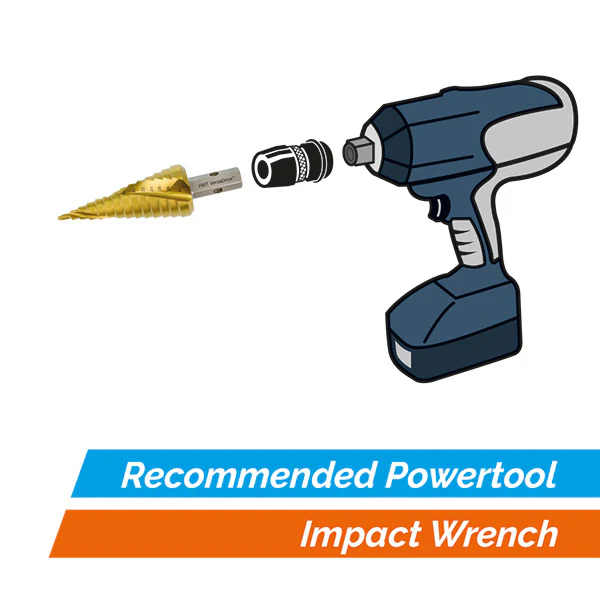

- For fastest performance use on Impact Wrenches & Impact Drivers
- Excellent life and performance when used with rotary pistol drills or drill presses
- Suitable for stainless and harder materials if used at low RPM
- Use appropriate lubrication and correct RPM to achieve long tool life
How to decide which Impact Wrench or Impact Driver to use.

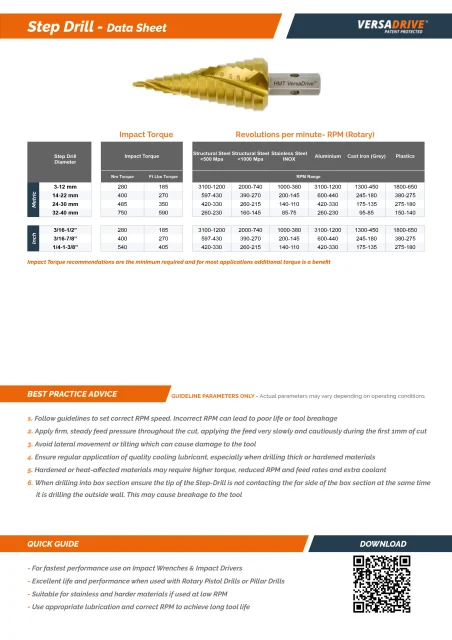

- Identify the torque range (for the cutting tool) required using the data sheet in question 2. (Example M12 in 12mm plate – Guide torque 320Nm)
- Identify the torque range on your impact wrench or impact driver
- Look up model number to see torque range
- Check if there are speed/torque settings on the tool
- Select the closest torque setting on the impact wrench/impact driver ABOVE the torque recommendation
(this is for the following 2 reasons)
– Higher torque will only be used on demand
– Too low torque will lead to the tool jamming or even snapping as the flutes stop cutting and the torque transfers to the tool
